Measurement 4

In[43]:=

GaitCycleAnalisys["Caltenco", CaltencoRef, CaltencoOff, 4]

Imported Qualisys File (.TSV)

D:\\Mis documentos\\AAU\\Gait 2\\Caltenco0004.tsv

Analisys for the Right Leg

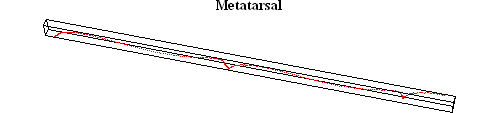

We Plot the trajectories of each marker

[Graphics:../HTMLFiles/index_206.gif]

[Graphics:../HTMLFiles/index_207.gif]

[Graphics:../HTMLFiles/index_209.gif]

[Graphics:../HTMLFiles/index_210.gif]

[Graphics:../HTMLFiles/index_212.gif]

[Graphics:../HTMLFiles/index_213.gif]

[Graphics:../HTMLFiles/index_215.gif]

[Graphics:../HTMLFiles/index_216.gif]

[Graphics:../HTMLFiles/index_218.gif]

[Graphics:../HTMLFiles/index_219.gif]

[Graphics:../HTMLFiles/index_221.gif]

[Graphics:../HTMLFiles/index_222.gif]

[Graphics:../HTMLFiles/index_224.gif]

[Graphics:../HTMLFiles/index_225.gif]

Analisys for the Left Leg

We Plot the trajectories of each marker

[Graphics:../HTMLFiles/index_230.gif]

[Graphics:../HTMLFiles/index_231.gif]

[Graphics:../HTMLFiles/index_233.gif]

[Graphics:../HTMLFiles/index_234.gif]

[Graphics:../HTMLFiles/index_236.gif]

[Graphics:../HTMLFiles/index_237.gif]

[Graphics:../HTMLFiles/index_239.gif]

[Graphics:../HTMLFiles/index_240.gif]

[Graphics:../HTMLFiles/index_242.gif]

[Graphics:../HTMLFiles/index_243.gif]

[Graphics:../HTMLFiles/index_245.gif]

[Graphics:../HTMLFiles/index_246.gif]

[Graphics:../HTMLFiles/index_248.gif]

[Graphics:../HTMLFiles/index_249.gif]

Right vs Left Leg

We obtain ψ , ψ , ψ , ψ TR T S F

[Graphics:../HTMLFiles/index_253.gif]

We obtain the Hip Angle ψ , the Knee Angle ψ and the Ankle Angle ψ H K A

[Graphics:../HTMLFiles/index_255.gif]

Phase Diagrams

[Graphics:../HTMLFiles/index_257.gif]

[Graphics:../HTMLFiles/index_258.gif]

[Graphics:../HTMLFiles/index_259.gif]
