Measurement 1

In[40]:=

GaitCycleAnalisys["Caltenco", CaltencoRef, CaltencoOff, 1]

Imported Qualisys File (.TSV)

D:\\Mis documentos\\AAU\\Gait 2\\Caltenco0001.tsv

Analisys for the Right Leg

We Plot the trajectories of each marker

[Graphics:../HTMLFiles/index_23.gif]

[Graphics:../HTMLFiles/index_24.gif]

[Graphics:../HTMLFiles/index_26.gif]

[Graphics:../HTMLFiles/index_27.gif]

[Graphics:../HTMLFiles/index_29.gif]

[Graphics:../HTMLFiles/index_30.gif]

[Graphics:../HTMLFiles/index_32.gif]

[Graphics:../HTMLFiles/index_33.gif]

[Graphics:../HTMLFiles/index_35.gif]

[Graphics:../HTMLFiles/index_36.gif]

[Graphics:../HTMLFiles/index_38.gif]

[Graphics:../HTMLFiles/index_39.gif]

[Graphics:../HTMLFiles/index_41.gif]

[Graphics:../HTMLFiles/index_42.gif]

Analisys for the Left Leg

We Plot the trajectories of each marker

[Graphics:../HTMLFiles/index_47.gif]

[Graphics:../HTMLFiles/index_48.gif]

[Graphics:../HTMLFiles/index_50.gif]

[Graphics:../HTMLFiles/index_51.gif]

[Graphics:../HTMLFiles/index_53.gif]

[Graphics:../HTMLFiles/index_54.gif]

[Graphics:../HTMLFiles/index_56.gif]

[Graphics:../HTMLFiles/index_57.gif]

[Graphics:../HTMLFiles/index_59.gif]

[Graphics:../HTMLFiles/index_60.gif]

[Graphics:../HTMLFiles/index_62.gif]

[Graphics:../HTMLFiles/index_63.gif]

[Graphics:../HTMLFiles/index_65.gif]

[Graphics:../HTMLFiles/index_66.gif]

Right vs Left Leg

We obtain ψ , ψ , ψ , ψ TR T S F

[Graphics:../HTMLFiles/index_70.gif]

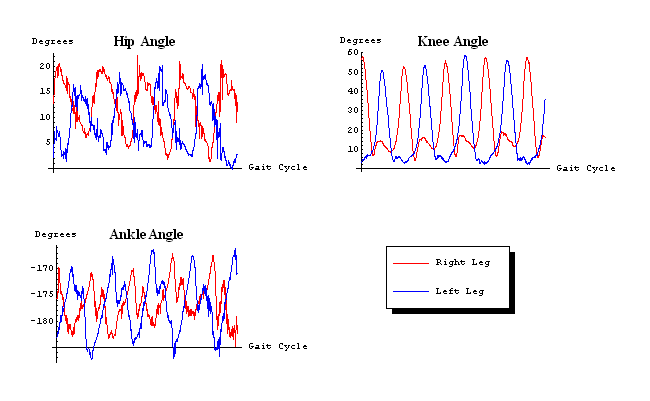

We obtain the Hip Angle ψ , the Knee Angle ψ and the Ankle Angle ψ H K A

[Graphics:../HTMLFiles/index_72.gif]

Phase Diagrams

[Graphics:../HTMLFiles/index_74.gif]

[Graphics:../HTMLFiles/index_75.gif]

[Graphics:../HTMLFiles/index_76.gif]
